RE series SR

The RE series from Salvatore Robuschi comprises centrifugal pumps with an open multi-channel impeller, manufactured in accordance with EN ISO 5199. The series offers excellent performance when pumping liquids containing solid particles, high-viscosity liquids and under critical suction conditions. Thanks to the large inlet opening and the limited number of impeller blades, the RB series also delivers excellent suction performance in the presence of dissolved gas or air.

Executions

REB – Independent frame with oil lubrication, ideal for heavy-duty applications
REL – Lantern bracket with flexible coupling and standard B5 motor

Expert advice
Request a quote
brand-img-Salvatore Robuschi
RE series SR
Product
RE serie SR
Impeller type
Channel
Maximum capacity
500 m³/h
Maximum head
50 mwc
Maximum working pressure
10 Bar
Maximum temperature
220°C
Brand
Salvatore Robuschi
Application
Wastewater, Chemical industry, Industrial installations, Pulp and paper industry, Refinery, Food industry, Water treatment

Standard materials

  • Cast iron
  • Stainless steel 316
  • On request: Superduplex and AISI 904L

Flange standard
EN 1092 PN10
On request: ANSI B16.5 150

Want to find out more about this product?

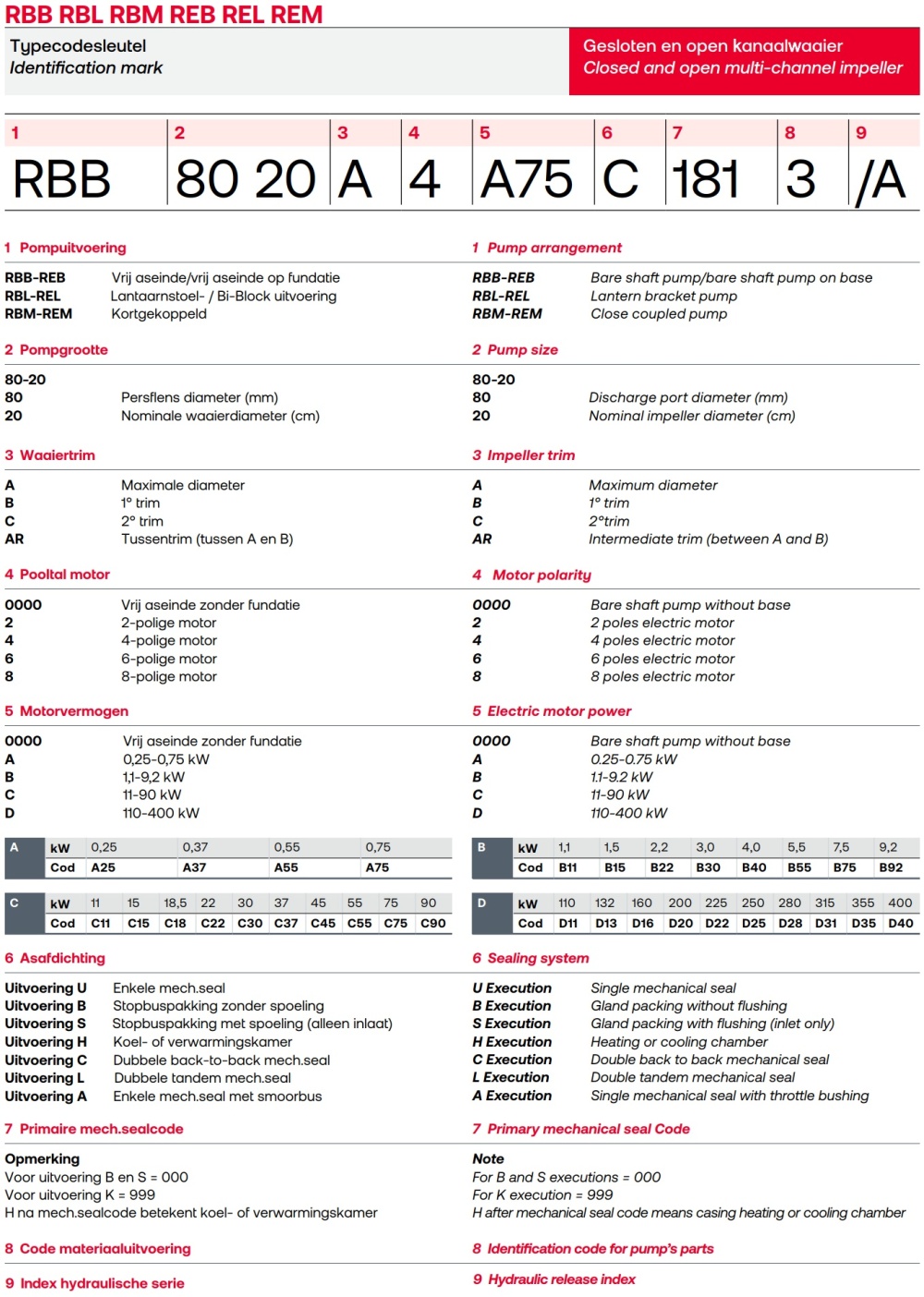

Catalogue RB-RE series SR

Lantern bracket execution ; REL 80-31, REL 125-31

Bare shaft on base ; REB 80-31, REB 125-31, REB 125-40

Advantages

Why choose the RE series SR

Optional ATEX certification
Available in ATEX-certified versions for zones 1 and 2, allowing safe use in potentially explosive atmospheres.
High-quality Italian engineering
Salvatore Robuschi, based in Parma, Italy, has been developing and manufacturing high-quality pumps since 1935.
Custom solutions, fast delivery
In many cases, bespoke solutions can be provided within a short lead time. Please contact us for a bespoke solution.

Applications

Industrial applications

Food industry
Pulp and paper industry
Wastewater
Chemical industry
