MH/EH series FE

The Franklin Electric MH and EH series are horizontal multistage pumps manufactured from stainless steel, designed for pressure boosting and circulation in a wide range of applications. Both series are available in five flow rates and various power ratings in single-phase or three-phase versions, ensuring that the right pump for the application is always available.

The impellers and diffusers are made from stainless steel to ensure high performance and a long service life. The materials are WRAS and ACS certified, making the pumps suitable for drinking water applications. The MH series is also fitted with a flexible base plate for easy installation.

They are also available with self-priming functionality or a connected variable-frequency drive for maximum efficiency, simplicity, innovation and safety.

Expert advice
Request a quote
brand-img-Franklin Electric
MH/EH series FE
Product
MH/EH serie FE
Impeller type
Multistage
Maximum capacity
29 m³/h
Maximum head
100 mwc
Maximum working pressure
10 Bar
Brand
Franklin Electric
Application
Pressure boosting, Industrial installations, Irrigation systems, Water supply
Pump casing / impeller

AISI 304 (standard) / AISI 316L (optional)
Diffuser

AISI 304 (standard) / AISI 316L (optional)
Pump shaft

AISI 304 (standard) / AISI 316 (optional)
Elastomers

EPDM (standard) / FKM (on request)
Mechanical seal

Standard MH/EH 3-5-9: Ceramic / Carbon / EPDM

Standard MH/EH 15-20: Carbon / Silicon carbide / EPDM

On request: Silicon carbide / Silicon carbide / EPDM

On request: Silicon carbide / Silicon carbide / FKM

On request: Silicon carbide / Tungsten carbide / FKM
Want to find out more about this product?
Catalogue MH series FE
Want to find out more about this product?
Catalogue EH series FE

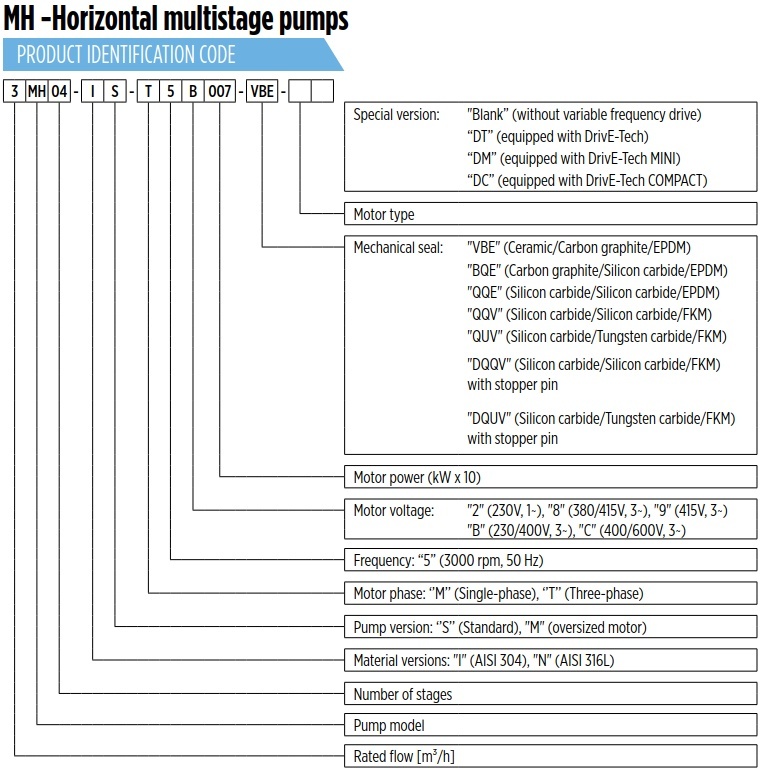

Availabale series : 3MH02, 3MH03, 3MH04, 3MH05, 3MH06, 3MH07, 3MH08, 3MH09, 5MH02, 5MH03, 5MH04, 5MH05, 5MH06, 5MH07, 5MH08, 5MH09, 9MH02, 9MH03, 9MH04, 9MH05, 9MH06, 9MH07, 9MH08,15MH02,15MH03, 15MH04, 15MH05, 15MH06, 15MH07, 20MH02, 20MH03, 20MH04, 20MH05, 3MH02-IS-M52003-VBE-W2, 3MH03-IS-M52005-VBE-W2, 3MH04-IS-M52005-VBE-W2, 3MH05-IS-M52007-VBE-W2, 3MH06-IS-M52011-VBE-W2, 3MH07-IS-M52011-VBE-W2, 3MH08-IS-M52015-VBE-W2, 3MH09-IS-M52015-VBE-W2, 3MH02-IS-T5B007-VBE-W3, 3MH03-IS-T5B007-VBE-W3, 3MH04-IS-T5B007-VBE-W3, 3MH05-IS-T5B007-VBE-W3, 3MH06-IS-T5B011-VBE-W3, 3MH07-IS-T5B011-VBE-W3, 3MH08-IS-T5B015-VBE-W3, 3MH09-IS-T5B015-VBE-W3, 5MH02-IS-M52005-VBE-W2, 5MH03-IS-M52005-VBE-W2, 5MH04-IS-M52011-VBE-W2, 5MH05-IS-M52011-VBE-W2, 5MH06-IS-M52015-VBE-W2, 5MH07-IS-M52015-VBE-W2, 5MH02-IS-T5B007-VBE-W3, 5MH03-IS-T5B007-VBE-W3, 5MH04-IS-T5B011-VBE-W3, 5MH05-IS-T5B011-VBE-W3, 5MH06-IS-T5B015-VBE-W3, 5MH07-IS-T5B015-VBE-W3, 5MH08-IS-T5B022-VBE-W3, 5MH09-IS-T5B022-VBE-W3, 9MH02-IS-M52007-VBE-W2, 9MH03-IS-M52011-VBE-W2, 9MH04-IS-M52015-VBE-W2, 9MH02-IS-T5B007-VBE-W3, 9MH03-IS-T5B011-VBE-W3, 9MH04-IS-T5B015-VBE-W3, 9MH05-IS-T5B022-VBE-W3, 9MH06-IS-T5B022-VBE-W3, 9MH07-IS-T5B030-VBE-L3, 9MH08-IS-T5B030-VBE-L3, 15MH02-IS-T5B015-BQE-L3, 15MH03-IS-T5B022-BQE-L3, 15MH04-IS-T5B030-BQE-L3, 15MH05-IS-T5C040-BQE-L3, 15MH06-IS-T5B055-BQE-L3, 15MH07-IS-T5B055-BQE-L3, 20MH02-IS-T5B022-BQE-L3, 20MH03-IS-T5B030-BQE-L3, 20MH04-IS-T5C040-BQE-L3, 20MH05-IS-T5C055-BQE-L3

Advantages

Why choose the MH/EH series FE

Simple maintenance and inspection
Franklin Electric pumps are designed with ease of installation and maintenance in mind.
High-quality European engineering
Franklin Electric Europa GmbH, based in Wittlich, Germany, is the European subsidiary of Franklin Electric, a global leader in pumps, motors and controls.
Fast delivery times
Franklin Electric has a large European distribution centre in Germany, which means that many pumps can often be supplied quickly from stock.

Applications

Industrial applications

Water supply
Pressure boosting
Industrial installations
Irrigation systems
