Ossi-Jet series FP

The Ossi-Jet is an oxidation system consisting of a submersible pump, an air suction pipe and a number of ejectors. The wastewater is pumped through a nozzle and draws in air at atmospheric pressure through a pipe by means of the Venturi effect, creating a flow that is mixed with air in the ejectors. These units ensure a high oxygen transfer, and the flow can easily be directed to optimise the homogenisation of the wastewater. Depending on the model, the Ossi-Jet is equipped with one to three ejectors. For correct operation, a free space of at least 2 to 2.5 times the water depth is required in front of the ejector.

With an Ossi-Jet, any biological treatment tank can be aerated efficiently and at low operating costs. The Ossi-Jet is an original system that allows you to aerate and mix industrial, municipal and agricultural wastewater simultaneously, while reducing investment and operating costs.

Expert advice
Request a quote
brand-img-Faggiolati Pumps
Ossi-Jet series FP
Product
Ossi-Jet serie FP
Maximum SOTR
45 kgO2/h
Maximum motor power
39,20 kW
Brand
Faggiolati Pumps
Application
Wastewater, Chemical industry, Industrial installations, Water treatment
Want to find out more about this product?
Catalogue Ossi-Jet series FP

The primary liquid flow, generated by an electric submersible pump, passes through the calibrated nozzle and the suction area of the secondary air flow, and leaves through the mixing tube and the diffuser. As the primary liquid flow passes through the nozzle, its velocity increases considerably, creating a stable vacuum in the air suction area so that air is drawn in. The water (the primary flow) and the air (the secondary flow) are then fully mixed as they pass through the zones of high turbulence in the ejector(s).

Ossi-Jet Werking

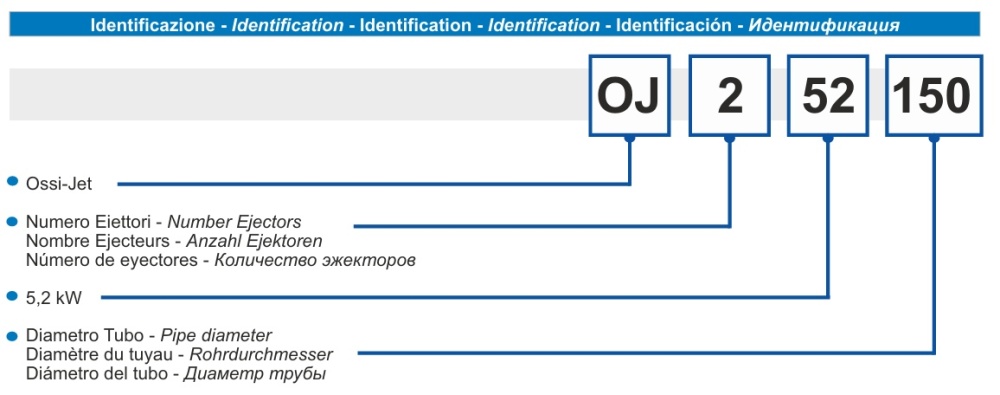

OJ: OJ128-80, OJ146-100, OJ175-100, OJ1120-100, OJ1144-150, OJ2230-200, OJ2290-250, OJ3400-250

Advantages

Why choose the Ossi-Jet series FP

No aerosol effect
There is no spraying or leakage of liquid particles into the atmosphere. This prevents pollution of the ambient air and ensures better working conditions for staff in the factory.
Maximum quiet operation
The Ossi-Jet operates whilst fully submerged, resulting in a significant reduction in noise levels.
High-quality Italian craftsmanship
Faggiolati Pumps, based in Sforzacosta, Italy, offers a comprehensive range of aerators for the treatment of wastewater and sludge in civil and industrial applications. The systems are characterised by their robust and reliable construction.

Applications

Industrial applications

Wastewater
Chemical industry
Industrial installations
Water treatment
