SF series SonFlow

Thanks to innovative technologies and intelligent design, our traditional plate heat exchangers represent an excellent investment and are the preferred choice for standard applications. Our plate heat exchangers are designed to meet specific temperature and capacity requirements, making them ideal for HVAC, industrial and hygienic applications.

A number of models within the SF series are available in a double-walled version. The double-walled version is explained below under ‘Construction materials’.

Expert advice
Request a quote
brand-img-SonFlow
SF series SonFlow
Product
Platenwarmtewisselaars SF serie
Maximum working pressure
10 Bar
Maximum temperature
180°C
Brand
SonFlow
Application
Wastewater, Industrial installations, Marine & offshore, Food industry, Water supply

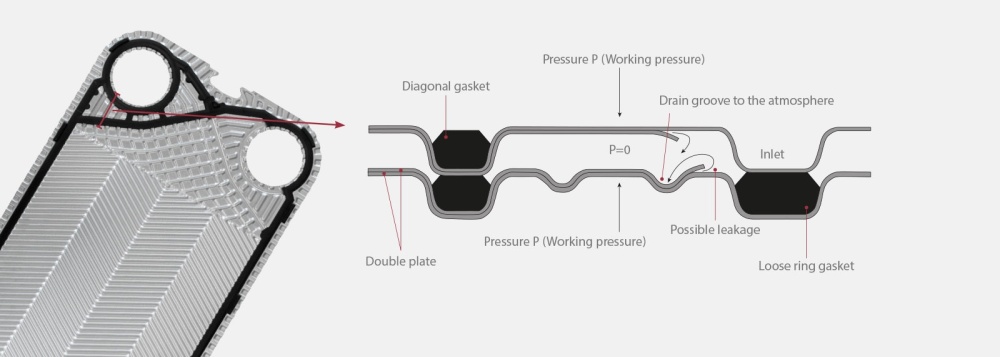

Double Wall Plate Heat Exchangers
The double wall system consists of two thin flow plates, welded together at the four portholes to form a plate pair. Each fluid flows on its respective side of this plate pair. Should a crack or hole develop in one of the plates, fluid migrates into the space between the plates, rather than directly into the opposing circuit. It is then channelled through dedicated leak channels, making it visible from the outside - particularly in the inlet and outlet areas. This means that a leak is detectable before any mixing occurs.

Advantages

Why choose the SF series SonFlow

High efficiency
Due to the pressed patterns in the plates and the relatively narrow gaps, very high turbulence is achieved at relatively low fluid velocity.
Expandable
Saves time and money.
Less Fouling
A smooth plate surface minimizes fouling.
Easy to Clean
Remove the tie bolts and slide back the movable frame part, the plate pack can be easily inspected and cleaned.
Multiple Duties in a Single Unit
Can be constructed with multiple sections, separated by divider plates or more complex divider frames.
Compact size
