T, P and J series FP

Name: T, P and J series FP
Brand: Faggiolati Pumps
SKU: T/P/J serie FP
Availability: InStock

Submersible cutter pumps reduce solids in the medium so the hydraulics do not clog. That makes them the answer where a conventional submersible pump jams, for example on cloths, rope, wet wipes or packaging material in the waste water.

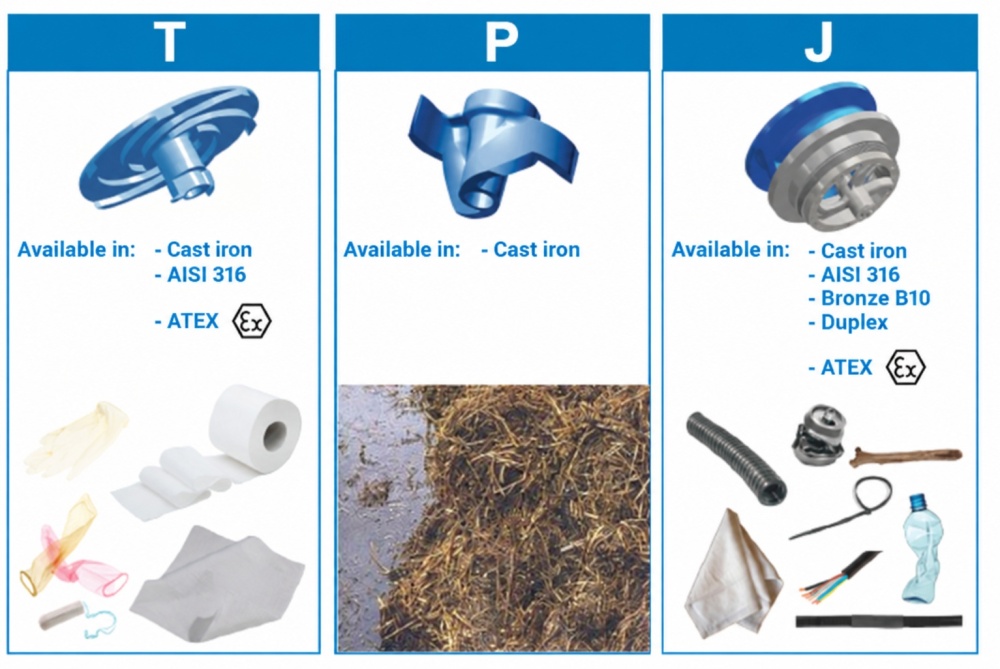

Depending on the application, these pumps are divided into the T, P and J series. The T series is the grinder for pressure sewerage systems and comparable domestic and commercial waste water, with a grinding group in stainless steel AISI 420 that also copes with paper and textile fibres. The P series is designed for manure from livestock housing and handles long, tough fibres such as straw. The J series combines an open multi-channel impeller with self-cleaning vanes and a cutting device, intended for unscreened waste water at high flow rates.

The T and J series are also available in stainless steel AISI 316, and the J series additionally in bronze B10 and duplex, so chemically laden waste water is no constraint. An ATEX version is available for the T and J series.

Expert advice

Request a quote

Specifications

Technical specifications

Product

T/P/J serie FP

Impeller type

Cutter

Maximum submersion depth

20 m

Maximum capacity

300 m³/h

Maximum head

70 mwc

Maximum temperature

40°C

Brand

Faggiolati Pumps

Application

Wastewater, Chemical industry, Industrial installations, Pulp and paper industry, Textile industry, Food industry, Water treatment

Materials

Construction materials

Material

Cast iron EN-GJL-250/GS400
Some models in CF8M/AISI 316

Impeller types

T-cutter: grinder for pressure sewerage systems and comparable domestic waste water
P-cutter: for liquids containing long, tough fibres such as straw
J-cutter: cutting device for unscreened waste water at high flow rates

Range

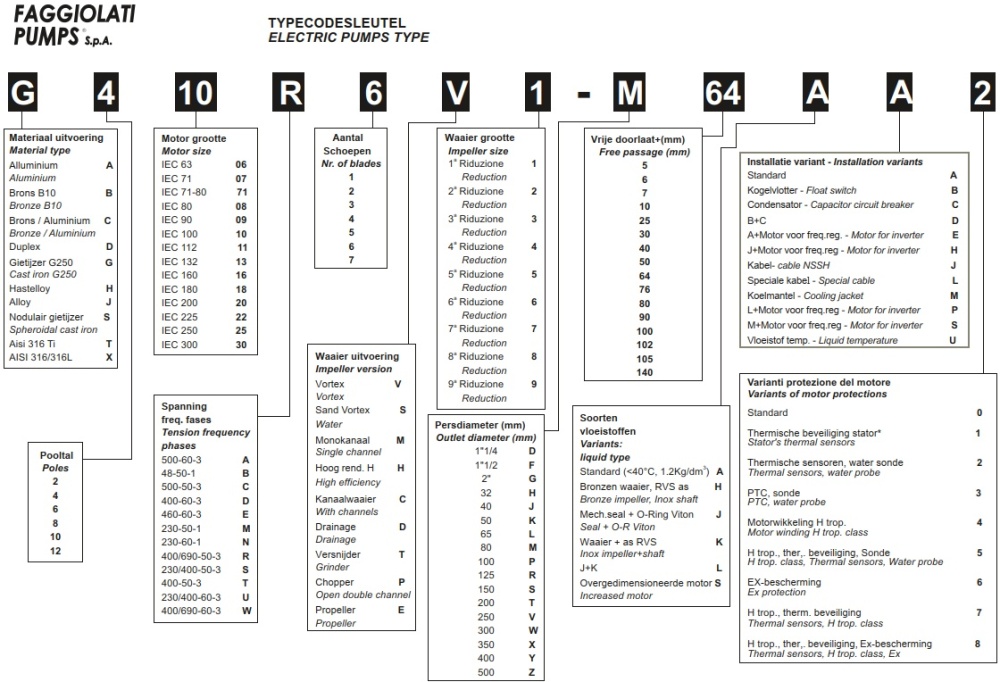

Grinder series : G272M3T1‐J6AD1, G272M3T2‐J6AD1, G272M3T3‐J6AD1, G272T3T1‐J6AA0, G272T3T2‐J6AA0, G272T3T3‐J6AA0, G271M6T1‐J6AD1, G271M6T2‐J6AD1, G271M6T3‐J6AD1, G271T6T1‐J6AA0, G271T6T2‐J6AA0, G271T6T3‐J6AA0, G209T6T1‐J7AA0, G209T6T2‐J7AA0, G210R6T1‐J7AA2, G210R6T2‐J7AA2, G210R6T3‐J7AA2, G211R4T3‐L10AA2, G211R4T1‐L10AA2, G211R4T4‐L10AA2, G211R4T5‐L10AA2, G211R4T7‐L10AA2, G211R6T2‐L8AA2, G211R6T6‐L8AA2, G211R6T3‐L8AA2, G213R4T1‐L10AA2, G213R4T7‐L10AA2, G213R4T2‐L10AA2, G213R4T3‐L10AA2, G213R4T4‐L10AA2, G216R4T1‐L10AA2, G216R4T2‐L10AA2, G216R6T1‐L10AA2, X271M6T1‐J6LD7, X271M6T2‐J6LD7, X271M6T3‐J6LD7, X271T6T1‐J6LA4, X271T6T2‐J6LA4, X271T6T3‐J6LA4, X209T6T1‐J7LA4, X209T6T2‐J7LA4, X210R6T1‐J7LA5, X210R6T2‐J7LA5, X210R6T3‐J7LA5

Cutter P series: G272M2P1‐G25AD1, G272T2P1‐G25AA0, G272T2P1‐K25AA0

Kut-All series : G411R2J2‐P60AA2, G411R2J2‐S60AA2, G411R2J1‐S60AA2, G411R2J5‐P60AA2, G411R2J3‐P60AA2, G413R2J1‐S60AA2, G413R2J1‐P60AA2, G413R2J3‐P60AA2, G413R2J2‐P60AA2, G413R2J4‐P60AA2, G413R2J5‐S60AA2
