Flexible impeller pumps Liverani

Name: Flexible impeller pumps Liverani
Brand: Liverani
SKU: Flexible impeller pumps
Availability: InStock

The Liverani flexible impeller pump is extremely versatile. This pumping principle ensures a gradual, smooth pumping action combined with excellent self-priming properties. It pumps both thin and thick liquids, even those containing suspended solids, is dry (!) self-priming and reversible in direction of rotation.

- Self-priming up to 6 metres, even with a dry start
- Reversible rotation
- Smooth and even (non-pulsating) pumping action

Expert advice

Request a quote

Specifications

Technical specifications

Product

Flexible impeller pumps

Maximum viscosity

50,000 cSt

Maximum capacity

72 m³/h

Maximum suction lift

6 m

Maximum working pressure

4 bar

Maximum temperature

100°C

Brand

Liverani

Application

Chemical industry, Industrial installations, Textile industry, Food industry

Materials

Construction materials

Standard materials
Stainless steel 304 (AISI 304), stainless steel 316 (AISI 316)

Impellers
NR, CR, EPDM, NBR and VMQ

Connections
3/8" to DN100, in Garolla, DIN 11851, BSP, Macon, Triclover, SMS, BSM/RJT or Friederich

Shaft seal
Ceramic-graphite with NBR, Viton or EPDM, tungsten carbide with Viton or silicon carbide with EPDM

Want to find out more about this product?

Brochure flexible impeller pumps Liverani

Working principle

An impeller with flexible rubber vanes rotates in a pump casing fitted with a cam. On the suction side the vanes clear the cam and spring back, increasing the space between two vanes and drawing liquid in. The liquid is carried between the vanes to the discharge side. There the cam bends the vanes, reducing the space between them and forcing the liquid out.

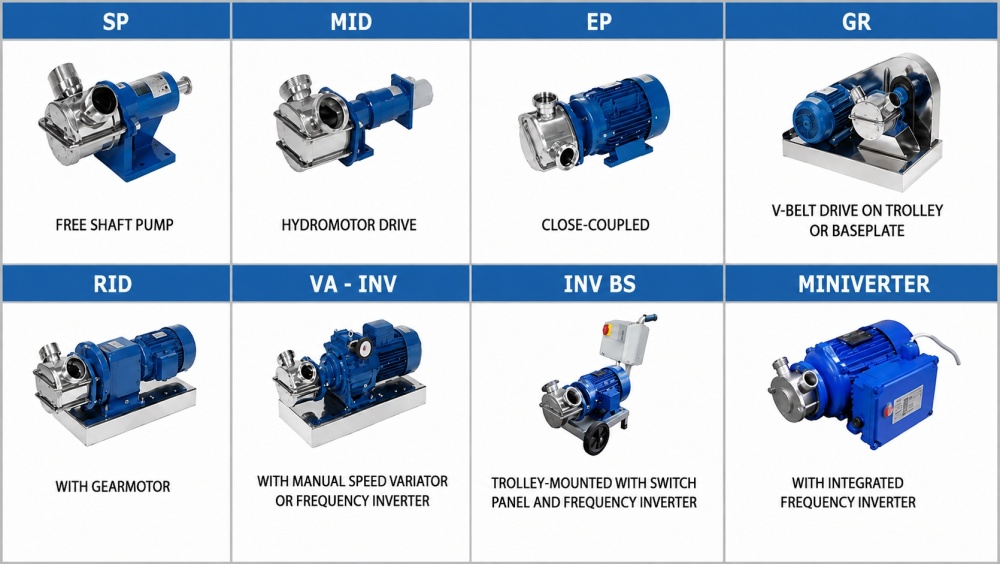

Range

S/P, bare shaft: MINI 3/4" S/P, MINOR 40 S/P, MAJOR 60 S/P, MAXI 80 S/P

MID, hydraulic orbital motor: MID MINOR 40, MID MAJOR 60, MID MAXI 80

EP, close-coupled (monoblock): EP MINI 3/4", EP MIDEX 1"1/4, EP MINOR 40, EP MAJOR 60, EP MAXI 80

GR, belt-driven on base or trolley: GR MINOR, GR MAJOR, GR MAXI

RID, with gear motor: RID MINOR, RID MAJOR, RID MAXI

VA, with mechanical speed variator: VA MINOR, VA MAJOR, VA MAXI

INV, with frequency converter: INV MINI, INV MIDEX, INV MAJOR, INV MAXI

INV BS, monoblock with frequency converter and controls on main panel: INV BS MINOR, INV BS MAJOR

MINIVERTER, monoblock with integrated frequency converter: MINIVERTER MINI, MINIVERTER MIDEX

ALL IN ONE, with frequency converter, flow meter and touchscreen: ALL IN ONE MAJOR, ALL IN ONE MAXI

Advantages

Why choose the Flexible impeller pumps Liverani

Suitable for high-viscosity liquids

The flexible vane pump conveys liquids with viscosities of up to 50,000 cP, even at low speeds. Gentle and fragile liquids containing suspended solids are pumped carefully without causing damage, emulsification or entrapment of air.

Reversible in the direction of rotation

Thanks to their clever design, these pumps are reversible, making it easy to reverse the direction of the fluid flow. This offers additional flexibility across a wide range of applications.
