RG series SR

The RG series from Salvatore Robuschi comprises centrifugal pumps for the chemical and petrochemical industries, manufactured in accordance with EN ISO 2858 and EN ISO 5199. The open impeller makes the RG series suitable for liquids containing non-abrasive solid particles, liquids with dissolved gas and critical suction conditions.

Executions

RGB – Independent frame with oil lubrication, ideal for heavy-duty applications
RGL – Lantern bracket with flexible coupling and standard B5 motor
RGM – Monoblock with standard B5 electric motor, compact and easy to install

Expert advice
Request a quote
brand-img-Salvatore Robuschi
RG series SR
Product
RG serie SR
Impeller type
Open
Maximum capacity
300 m³/h
Maximum head
95 mwc
Maximum working pressure
16 bar
Maximum temperature
220°C
Brand
Salvatore Robuschi
Application
Waste incineration & flue gas treatment, Wastewater, Chemical industry, Industrial installations, Pulp and paper industry, Refinery, Textile industry, Food industry, Water treatment

Standard materials

  • Stainless steel 316
  • Superduplex (grades 32–80)
  • On request: AISI 904L

Flange standard
EN 1092 PN16
On request: ANSI B16.5 150

Want to find out more about this product?

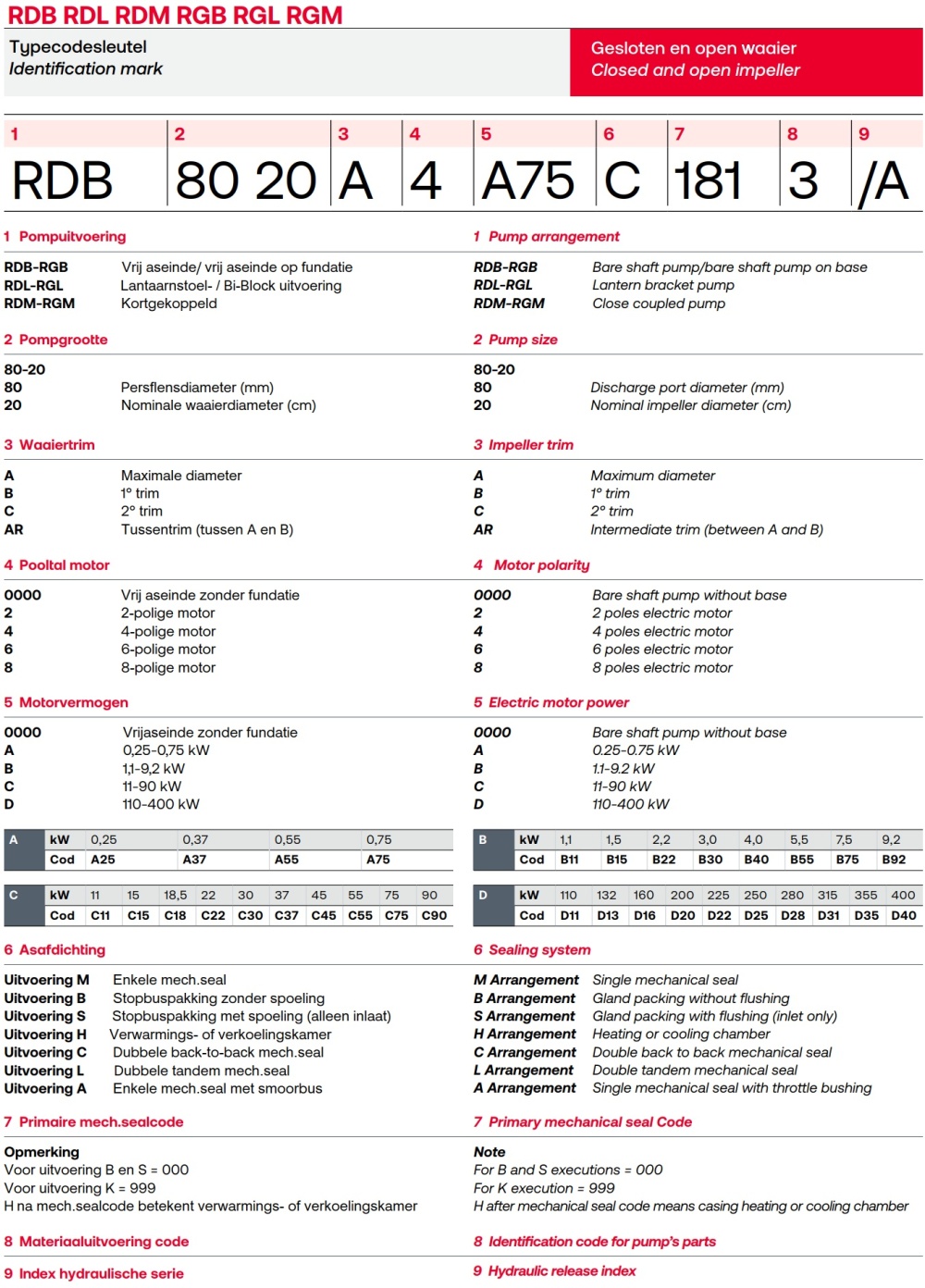

Catalogue RD-RG series SR

RGB, independent frame with oil-lubricated bearings / bare shaft: RGB 32-12, RGB 32-16, RGB 32-20, RGB 40-12, RGB 40-16, RGB 40-20, RGB 50-12, RGB 50-16, RGB 50-20, RGB 50-25, RGB 65-16, RGB 65-20, RGB 65-25, RGB 65-31, RGB 80-16, RGB 80-20, RGB 80-25, RGB 80-31, RGB 100-20, RGB 100-25, RGB 100-31, RGB 100-40, RGB 125-25, RGB 125-31, RGB 125-40

RGL, lantern bracket with flexible coupling (Bi-Block): RGL 32-12, RGL 32-16, RGL 32-20, RGL 40-12, RGL 40-16, RGL 40-20, RGL 50-12, RGL 50-16, RGL 50-20, RGL 50-25, RGL 65-16, RGL 65-20, RGL 65-25, RGL 65-31, RGL 80-16, RGL 80-20, RGL 80-25, RGL 80-31, RGL 100-20, RGL 100-25, RGL 100-31, RGL 100-40, RGL 125-25, RGL 125-31, RGL 125-40

RGM, close-coupled (monoblock): RGM 32-12, RGM 32-16, RGM 32-20, RGM 40-12, RGM 40-16, RGM 40-20, RGM 50-12, RGM 50-16, RGM 50-20, RGM 50-25, RGM 65-16, RGM 65-20, RGM 65-25, RGM 65-31, RGM 80-16, RGM 80-20, RGM 80-25, RGM 80-31, RGM 100-20, RGM 100-25, RGM 100-31, RGM 100-40, RGM 125-25, RGM 125-31, RGM 125-40

Advantages

Why choose the RG series SR

Optional ATEX certification
Available in ATEX-certified versions for zones 1 and 2, allowing safe use in potentially explosive atmospheres.
High-quality Italian engineering
Salvatore Robuschi, based in Parma, Italy, has been developing and manufacturing high-quality pumps since 1935.
Custom solutions, fast delivery
In many cases, bespoke solutions can be provided within a short lead time. Please contact us for a bespoke solution.

Applications

Industrial applications

Chemical industry
Wastewater
Food industry
Waste incineration & flue gas treatment
