FN series FE

Franklin Electric’s normal-suction centrifugal pumps are reliable and efficient pumps for clean liquids. The pumps are manufactured in strict accordance with the EN 733 standard, which guarantees top quality, durability and exceptional energy efficiency. These standardised centrifugal pumps are designed using advanced technology to deliver reliable, long-lasting performance when pumping clean liquids free from abrasive particles or suspended solids, making them perfectly suited to non-explosive environments.

The impeller is protected by a cataphoretic coating, which offers excellent resistance to wear and corrosion. This makes the pumps suitable for mildly aggressive liquids, whilst enhancing their durability and overall reliability. The versatile pump configurations are suitable for handling a wide range of liquids and feature motors from leading brands, all designed to meet stringent efficiency and quality standards.

Expert advice
Request a quote
brand-img-Franklin Electric
FN series FE
Product
FN serie FE
Impeller type
Closed
Maximum capacity
240 m³/h
Maximum head
100 mwc
Maximum working pressure
10 Bar
Maximum temperature
120°C
Brand
Franklin Electric
Application
Industrial installations, Irrigation systems, Water supply, Water treatment
Pump casing / impeller:

 GJL20 cast iron with anti-corrosion coating

brass for FNC 32-125 and 32-160
Pompas:  AISI 304
Mechanical seal:

Ceramic/Carbon/NBR

Silicium Carbide/Carbon/EPDM

Silicium Carbide/Carbon/FKM

Silicium Carbide/Tungsten Carbide/EPDM

Silicium Carbide/Tungsten Carbide/FKM



Want to find out more about this product?
Catalogue FN series FE

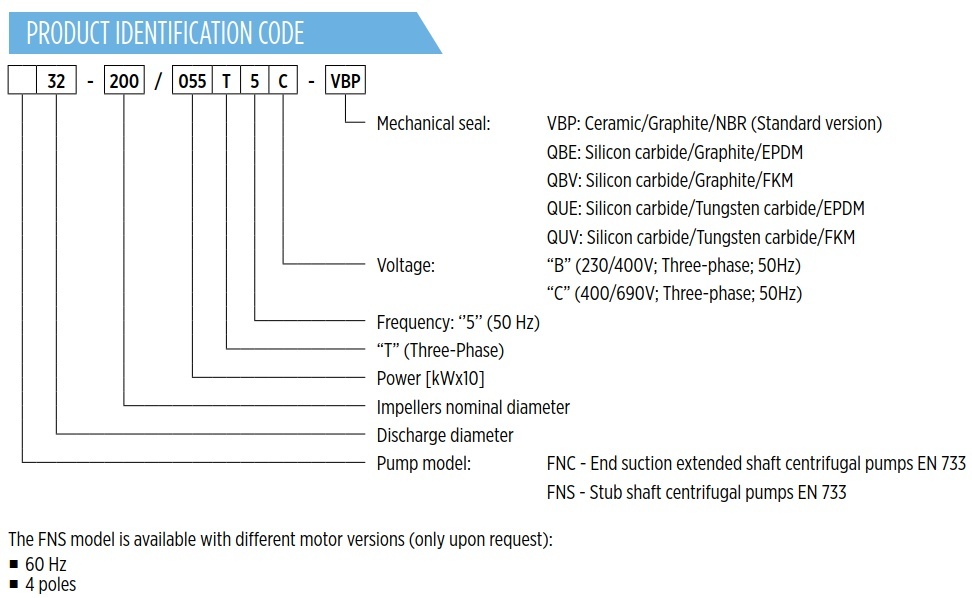

Available models : FNC 32-125/011 T5B VBP, FNC 32-125/015 T5B VBP, FNC 32-160/022 T5B VBP, FNC 32-160/030 T5B VBP, FNC 32-200/040 T5B VBP, FNC 32-200/055 T5C VBP, FNC 32-200/075 T5C VBP, FNC 32-250/092 T5C VBP, FNC 32-250/110 T5C VBP, FNC 32-250/150 T5C VBP, FNC 40-125/015 T5B VBP, FNC 40-125/022 T5B VBP, FNC 40-125/030 T5B VBP, FNC 40-160/030 T5B VBP, FNC 40-160/040 T5B VBP, FNC 40-200/055 T5C VBP, FNC 40-200/075 T5C VBP, FNC 40-250/110 T5C VBP, FNC 40-250/150 T5C VBP, FNC 50-125/022 T5B VBP, FNC 50-125/030 T5B VBP, FNC 50-125/040 T5B VBP, FNC 50-160/055 T5C VBP, FNC 50-160/075 T5C VBP, FNC 50-200/092 T5C VBP, FNC 50-200/110 T5C VBP, FNC 50-200/150 T5C VBP, FNC 50-250/150 T5C VBP, FNC 50-250/185 T5C VBP, FNC 50-250/220 T5C VBP, FNC 65-125/055 T5C VBP, FNC 65-125/075 T5C VBP, FNC 65-160/092 T5C VBP, FNC 65-160/110 T5C VBP, FNC 65-160/150 T5C VBP, FNC 65-200/150 T5C VBP, FNC 65-200/185 T5C VBP, FNC 65-200/220 T5C VBP, FNC 80-160/110 T5C VBP, FNC 80-160/150 T5C VBP, FNC 80-160/185 T5C VBP, FNC 80-160/220 T5C VBP, FNS 32-200/055 T5C VBP, FNS 32-200/075 T5C VBP, FNS 32-250/092 T5C VBP, FNS 32-250/110 T5C VBP, FNS 32-250/150 T5C VBP, FNS 40-200/055 T5C VBP, FNS 40-200/075 T5C VBP, FNS 40-250/110 T5C VBP, FNS 40-250/150 T5C VBP, FNS 50-160/055 T5C VBP, FNS 50-160/075 T5C VBP, FNS 50-200/092 T5C VBP, FNS 50-200/110 T5C VBP, FNS 50-200/150 T5C VBP, FNS 50-250/150 T5C VBP, FNS 50-250/185 T5C VBP, FNS 50-250/220 T5C VBP, FNS 65-125/055 T5C VBP, FNS 65-125/075 T5C VBP, FNS 65-160/092 T5C VBP, FNS 65-160/110 T5C VBP, FNS 65-160/150 T5C VBP, FNS 65-200/150 T5C VBP, FNS 65-200/185 T5C VBP, FNS 65-200/220 T5C VBP, FNS 65-250/370 T5C VBP, FNS 80-160/110 T5C VBP, FNS 80-160/150 T5C VBP, FNS 80-160/185 T5C VBP, FNS 80-160/220 T5C VBP, FNS 80-200/300 T5C VBP, FNS 80-200/370 T5C VBP, FNS 80-250/450 T5C VBP, FNS 80-250/550 T5C VBP, FNS 80-250/750 T5C VBP

Advantages

Why choose the FN series FE

Simple maintenance and inspection
Franklin Electric pumps are designed with ease of installation and maintenance in mind.
Fast delivery times
Franklin Electric has a large European distribution centre in Germany, which means that many pumps can often be supplied quickly from stock.
High-quality European engineering
Franklin Electric Europa GmbH, based in Wittlich, Germany, is the European subsidiary of Franklin Electric, a global leader in pumps, motors and controls.

Applications

Industrial applications

Industrial installations
Irrigation systems
Water supply
Water treatment
