GS series PP

The Pioneer GS series is a wet self-priming centrifugal pump, designed for the reliable handling of clean to moderately contaminated liquids containing solid particles up to 76 mm. Once initially primed, the pumps remain self-priming automatically through liquid recirculation, without the need for an external vacuum system.

Thanks to their self-priming operation, the pumps are ideally suited to applications where the suction pipe may run dry, may contain gas, or where the pump is installed above the tank bottom.

Expert advice
Request a quote
brand-img-Pioneer Pump
GS series PP
Product
GS serie Pioneer Pump
Impeller type
Open
Maximum capacity
785 m³/h
Maximum solids passage
76 mm
Maximum suction lift
7.60 m
Maximum head
53 mwc
Brand
Pioneer Pump
Application
Wastewater, Industrial installations, Irrigation systems, Slurry & sand extraction, Water supply, Water treatment

Standard materials

  • Pump casing: thick-walled cast iron
  • Impeller: nodular cast iron (wear-resistant)
  • Shaft: AISI 4140 steel (impact- and wear-resistant)
  • Mechanical seal: Stainless steel oil-lubricated cartridge seal, Tungsten Titanium Carbide with Viton O-rings

On request

  • Stainless steel 316
  • Duplex stainless steel CD4MCu




Principle of operation of the recirculation pump

The front (suction) chamber is always filled with liquid, and the pump’s inlet is positioned higher than the impeller, ensuring that it is always ‘filled’ and remains so. If the suction pipe is empty, the pump will draw in air or gas and convey it via the impeller to the second pump chamber. Here, the liquid and gas separate; the gas rises and leaves the pump via the discharge flange. The liquid returns to the suction chamber through the recirculation channel.

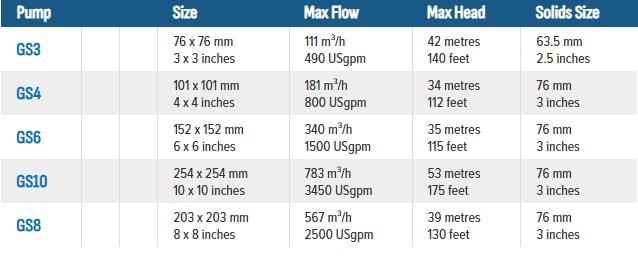

Pump Size Max Flow Max Head Solids Size
GS3 76 x 76 mm
3 x 3 inches		 111 m³/h
490 USgpm		 42 metres
140 feet		 63.5 mm
2.5 inches
GS4 101 x 101 mm
4 x 4 inches		 181 m³/h
800 USgpm		 34 metres
112 feet		 76 mm
3 inches
GS6 152 x 152 mm
6 x 6 inches		 340 m³/h
1500 USgpm		 35 metres
115 feet		 76 mm
3 inches
GS8 203 x 203 mm
8 x 8 inches		 567 m³/h
2500 USgpm		 39 metres
130 feet		 76 mm
3 inches
GS10 254 x 254 mm
10 x 10 inches		 783 m³/h
3450 USgpm		 53 metres
175 feet		 76 mm
3 inches

Advantages

Why choose the GS series PP

Suitable for ATEX
This Pioneer series is suitable for applications in ATEX zones, and also offers the possibility of replacing submersible pumps in ATEX zones, with the pump installed outside the zone.
Simple maintenance and inspection
Fitted with a removable cover with a handle and jackbolts for easy dismantling. The external, shimless impeller adjustment allows for readjustment without dismantling the rotating unit.
Fast delivery times
The pumps from Pioneer, as well as the parts required for maintenance, are available from stock at the European facility.

Applications

Industrial applications

Wastewater
Industrial installations
Water treatment
Irrigation systems
