SFF series SonFlow

The Free Flow plates corrugation is designed for special tasks, where the conventional plate heat exchanger usually has a higher risk of fouling or clogging.

For the Free Flow plate series, the key focus lies in reliability and high performance. If the plate heat exchanger is not suited for the operating media, the intervals between maintenance and the risk of fouling are increased.

An optimized flow distribution
An optimized flow distribution reduces fouling and uneven temperature zones, keeping the performance levels high over time without unnecessary energy losses, maintenance costs, or unplanned stops.

Features
Every detail is designed carefully to ensure optimal heat transfer, reduced maintenance costs and decreased downtime.

Expert advice
Request a quote
brand-img-SonFlow
SFF series SonFlow
Product
Free Flow Platenwisselaar
Maximum working pressure
10 Bar
Maximum temperature
180°C
Brand
SonFlow
Application
Wastewater, Industrial installations, Marine & offshore, Food industry, Water supply

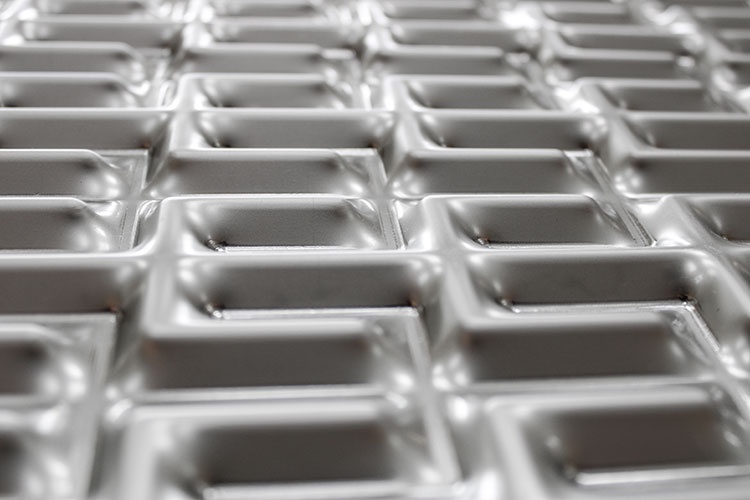

Plates in AISI304/316 or titanium
The wide channels provide enough room for difficult media to flow freely. The pattern of horizontal waves maintains no plate contact points in the flow direction, ensuring gentle treatment of the output product.

The clearance between the heat transfer plates measures up to 12 mm gab depending on the plate type.

Advantages

Why choose the SFF series SonFlow

Expandable
Saves time and money.
High efficiency
Due to the pressed patterns in the plates and the relatively narrow gaps, very high turbulence is achieved at relatively low fluid velocity.
Less Fouling
A smooth plate surface minimizes fouling.
Compact size
Multiple Duties in a Single Unit
Can be constructed with multiple sections, separated by divider plates or more complex divider frames.
Easy to Clean
Remove the tie bolts and slide back the movable frame part, the plate pack can be easily inspected and cleaned.
